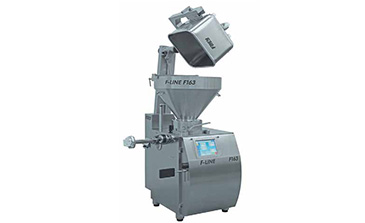

Fully electronic continual vacuum stuffer for Straightfilling, portioning and linking with frey top line drive
Filling performance max. 3.600 kg / h
Filling pressure: 40 bar
(inner and outer) machine housing and hopper are
Completely made of stainless steel
Solid hopper with 250 liters
Incl. Electronically locked footstep
Portioning range from 5 to 100.000 g
(5-999 g in 0,1 g steps)
Portioning speed max. 600 portions/min.
Speed and length of portioning pauses infinitely adjustable
Counter of passage quantity, piece counter, automatic
Stop control, flow-reverse mechanism, adjustable
1st portion weight, memory for 200 filling programs
Incl. Programs for cooked sausages
Electr. Pulse control for automatic clipping machines
With integrated vacuum systen and water separator
Digitally controlled vacuum system
Vacuum pump 21 m³
Total connected load: max. 10,5 kw
400 v, 50/60 hz
Capacity of filling hopper | 250 L |
Max. filling performance | 3600 kg/h |
Max. fillingpressure | 40 bar |
Chambers capacity | 82 g |
Number of wrings | 14 |
Portioning range | 5-100000 g |
Voltage | 400 V/50 Hz |
Rotor system | 伺服电机 Servo |
Stirrer dive | 齿轮 Gear |
Control tpye | TC733 |
Total power | 9.85 kW |
Vacuum pump | 21 cbm/h |
Weight(with lift) | 925 kg |
Max. portioning speed | 600 portions/min |
