Sect 230 Portion Cutter
  • Product Features
  • Parameters

›› Powerful blade drive

›› Integrated discharge conveyor*

›› Fully automatic lubrication system

›› Adjustable gripper end position

›› Easily accessible gripper guide-shaft for effective sanitation

›› Stable cut-off blade and support frame for an accurate

and clean cut

›› Two-wing blade for higher capacity*

›› Movable*

*Accessories

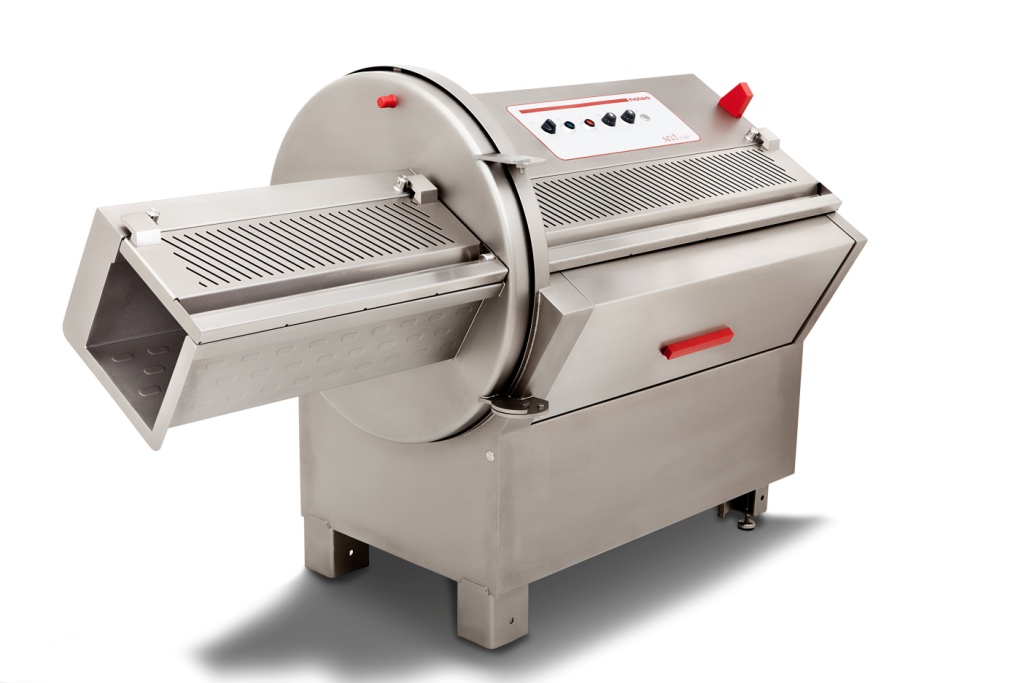

The Sect 230 is a highly flexible portion cutting machine,

with its electronically controlable product feed for optimal cut results.

The optional integrated discharge conveyor enables simple and swift product handling after slicing.

Technical parameters

Sect 230

Sect 230 C

Slice /minute

200/400/ min -1

200/400/ min -1

Chamber SizeW*H*L

230*180*740mm

230*180*740mm

Slice thickness

1-33mm

1-33mm

Power

3.8kw

3.8kw

Weight

340kg

400kg

Outer DimensionW*H*L

2105*970*1320mm

2905*970*1320

Discharging conveyor

NO

YES
