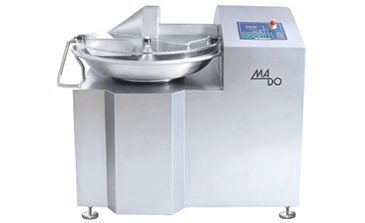

BC410 Bowl Chopper
  • Product Intro.
  • Tech. Parameters

High performance bowl choppers for the professional production of emulsions for cooked sausages or salami products

as well as for the processing of food material which needs to be cut, mixed and homogenized.

The design of the cutter bowl and the cutting chamber in relation with the high quality knifes

and a digital thermometer allow first class product quality.

The rotating speed of the knife shaft and the cutter bowl can be selected independently from each other.

 With this feature a high flexibility to process different variation of products is guaranteed.

The bowl choppers are fully made from high grade stainless steel.

The machine housing is welded together completely gap free for an easy, quick and hygienic proper cleaning. All CErequirements regarding safety and hygiene are fulfilled.

The top model BC 410 is equipped with all features of a professional bowl chopper. A strong motor with frequency converter for the knife shaft, the mixing function with stepless speed control either forward or reverse, the process control of pre-setting the temperature by using the electronic thermometer or of pre selecting the number of bowl turns and the possibility to store programs in the control board of the machine fulfill any demand.

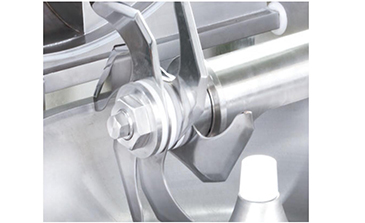

The knife head on all models is completely removable. They can be changed quickly and easily and be equipped with different kinds of knifes for various applications. Knife heads with three, four and six knifes are available.



Model

BC410

Voltage

400V, 50Hz, 3 Phase

Fuse

35 Ainert

Power of blade motorLow/High

15/18.5 kw

Bowl motor power Low/High

0.55/0.75kw

Cutting SpeedLow/High

500-4000rmp

Mixing Speed

50-400

Bowl speedLow/High

11/22 rmp

Blades Number

6

Bowl Volume

40L

Weight approx.

765kg
