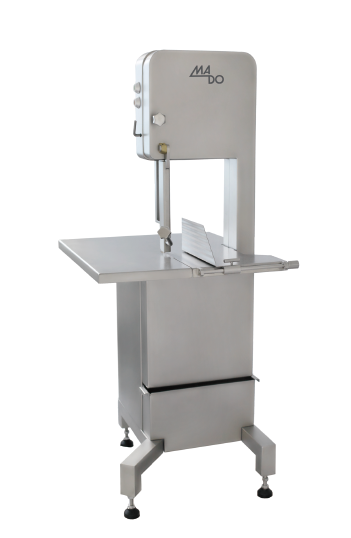

BS505 Band Saw
  • Product Intro.
  • Tech. Parameters

High performance band saws for the professional cutting of all kinds of food material, no matter if it is fresh or frozen, with or without bones. For each size of operation the ideal machine for customers, who are demanding excellence from their equipment.

For butcheries, meat processing plants, meat packers, retail stores and catering companies, six models in four dif- ferent sizes are available. Therewith all cutting processes can be done safe, precise and quick with a very proper cutting surface.

The machines are fully made from high degree stainless steel. The machine body is welded together completely gap free for an easy, quick and hygienic proper cleaning. All CE requirements regarding safety and hygiene are fulfilled.

The MADO band saws feature with their versatility, so- lidity, safety, reliability persistence and they are very easy to clean.

The solid finish of the machine body in first class work- manship together with the precise working blade tension- ing device guarantee an excellent vibration level with very low noise emission during operation.

The blade and wheel scrapers work very effective. They can be removed quickly and easily without tools. The removable safety pushing bar* and the portioning device, equipped with fine tuning application as a standard, can be stored safely on the side of the machine body on the foreseen brackets.

The machine table of all models can be flapped up to replace the saw blade and for the machine cleaning.

The high quality sealing of the saw blade wheels or all models provides a pressure water protection for the ball bearings, The achievement is a long life cycle.


Model

BS 505

Voltage

400 V, 50Hz,3phase

Power

1,5 kw

Revolution rpm

1450

Cutting Speed

22 m/sec

Saw Blade

2430x16x0,45 mm

Weight approx.

120 kg

Cutting Width

280mm

Cutting height

340mm

Table size

710*820mm
